What is printing machine for plastic cups

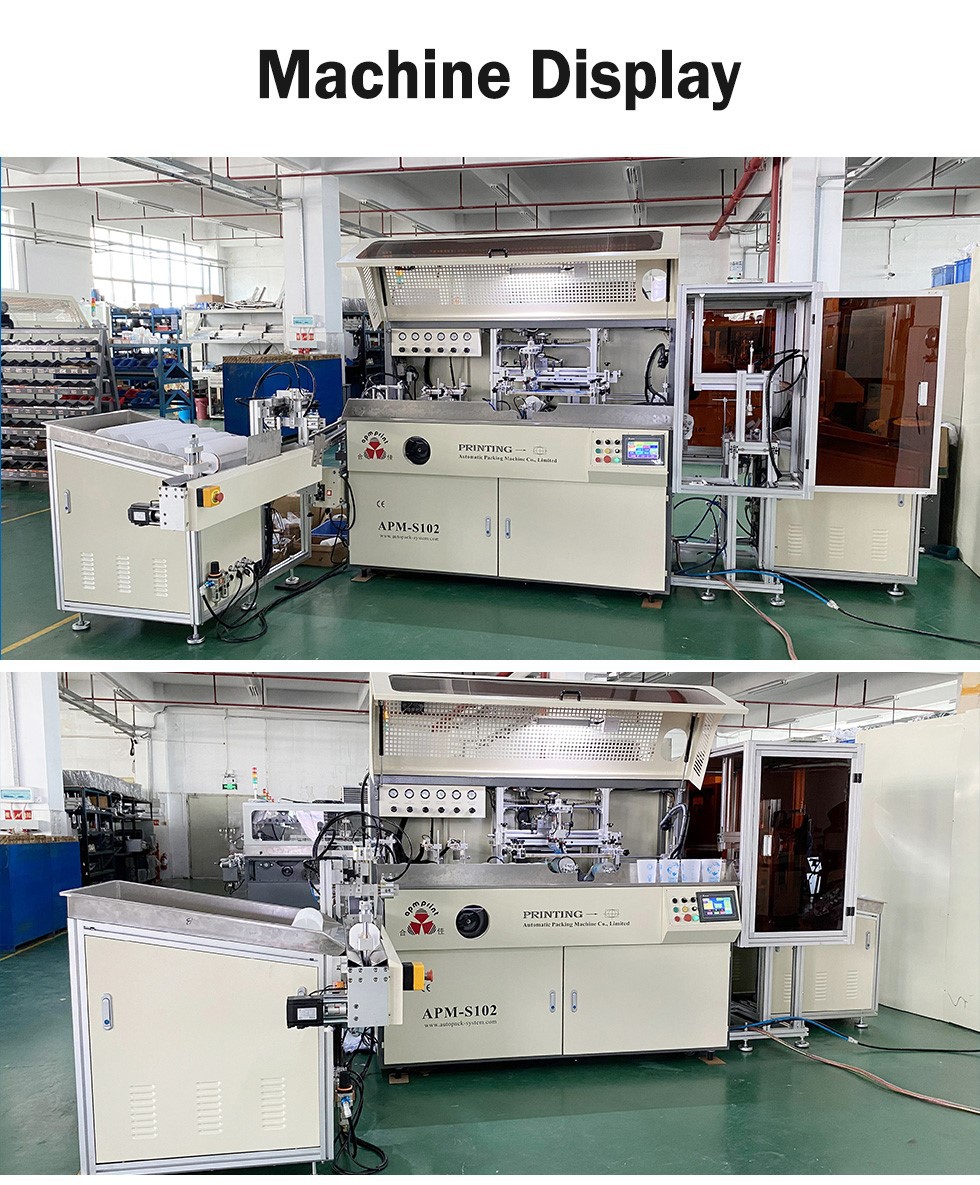

The APM-S102C is a state-of-the-art automatic screen printing machine for plastic cups, designed for high-speed and high-precision printing. It is widely used in industries such as food packaging, beverage production, and disposable cup manufacturing. With a fully automated process-from loading to printing and UV drying to unloading-this machine ensures superior efficiency, reliability, and ease of operation.
The APM-S102C offers unparalleled flexibility for single-color or multi-color printing, accommodating a wide range of cup diameters and lengths. Its intelligent PLC control system with a touch-screen interface ensures precise operation, while optional features like automatic loading and unloading systems make it highly adaptable to varied production
Features of printing machine for plastic cups
- Automatic Feeding System: Includes an optional loading belt that ensures smooth, fast, and continuous feeding of cups for high-efficiency production.
- Flame Treatment: Integrated flame treatment system enhances the adhesion of ink to plastic cups, ensuring long-lasting print quality.
- High-Speed Printing: Capable of printing 2,100–2,700 cups per hour, making it ideal for mass production.
- Customizable Multi-Color Printing: Additional printing units can be connected to achieve up to 8-color printing or repeat printing with a single unit.
- Quick Product Changeover: Easy adjustment and switching between cup sizes and designs for seamless workflow transitions.
- UV Drying System: Features electric or LED UV drying options for rapid and energy-efficient ink curing.
- Precision Control: Equipped with Delta PLC and touch-screen controls for accurate operation and simplified management.
- Space-Efficient Design: Compact dimensions suitable for production lines with limited space.
- CE Certification: Meets international safety and quality standards for worry-free operation.
Tech-data
|
Machine Dimensions |
Printing Unit: 1900 × 1200 × 1600 mm Feeding Unit (Optional): 3050 × 1300 × 1500 mm Unloading Unit (Optional): 1800 × 450 × 750 mm |
| Power Supply | 380V, 3-phase, 50/60Hz, 6.5 kW |
| Air Consumption | 5–7 bars |
| Cup Diameter | 25–100 mm |
| Cup Length | 50–280 mm |
| Printing Speed | 2,100–2,700 pcs/hr (Standard: 2,400 pcs/hr) |
| UV Drying Options | Electric UV or LED UV |
| Control System | Delta PLC + Touch Screen |
Maintenance
To ensure the APM-S102C operates efficiently and maintains its longevity, follow these maintenance guidelines
1. Conveying System
Regularly inspect and adjust the conveyor belt tension to prevent misalignment.
Clean the conveyor to remove debris that might interfere with smooth operation.
2. Printing Unit
Check the squeegee and screen frame for wear and replace as needed.
Clean ink residues after each production run to prevent clogging or contamination.
3. Flame Treatment System
Periodically clean the flame nozzles to ensure consistent and effective pre-treatment.
4. UV Drying System
Inspect UV lamps and LED curing systems regularly for any signs of wear. Replace lamps if their curing efficiency decreases.
5. Control System
Back up PLC and touch-screen settings periodically.
Keep the control panel clean and free of dust to ensure smooth operation.
FAQ
Q: What types of cups can this machine print on?
A: The machine is designed for printing on plastic cups with diameters ranging from 25–100 mm and lengths between 50–280 mm.
Q: What is the printing speed of the machine?
A: The machine can print at a speed of 2,100–2,700 cups per hour, with a standard operational speed of 2,400 cups per hour.
Q: Does the machine support multi-color printing?
A: Yes. You can connect multiple units of the APM-S102C to form a multi-color printing line, or use one unit to do repeat printing for multi-color designs.
Q: What type of drying system does the machine use?
A: The machine supports Electric UV drying or LED UV drying options.
Q: What is included in the automation process?
A: The APM-S102C includes:
Automatic loading onto the belt.
Automatic flame treatment.
Printing.
Automatic UV drying.
Automatic unloading.
Q: What power and air requirements does the machine have?
A: Power Supply: 380V, 3-phase, 50/60Hz, 6.5 kW.
Air Consumption: 5–7 bars.
Q: What maintenance is required for the machine?
A: Daily Maintenance:
Regularly clean the printing unit to prevent ink buildup.
Ensure proper lubrication of moving parts.
Monthly Maintenance:
Check air pressure and ensure the pneumatic system is working properly.
Inspect and replace any worn-out components like squeegees or mesh frames.
Annual Maintenance:
Full system inspection by qualified technicians.
Replace critical parts like UV lamps or vacuum valves if needed.
Q: What consumables are required for the machine?
A: Mesh frames.
Squeegees.
Ink.
Q: Are there any design limitations for printing?
A: Yes. It is recommended to leave a 0.8–1 cm blank area on the top and bottom of the cups for best results.
